Build a Home Moisture Source Diary

Finding the source of indoor humidity starts with what changes before the moisture signal changes. A single relative-humidity reading can describe the air around a sensor at one moment. It cannot tell you by itself whether the moisture came from a shower, outdoor air, rain, a damp material, HVAC behavior or another source.

Record the room, time, temperature, RH, activity, weather and equipment state. Then look for a sequence that repeats.

Do not guess the moisture source from one humidity reading. Build a pattern. The strongest explanation is usually the one that predicts where the signal appears, what happens before it and what happens after the suspected source or control changes.

Build the diary Start with the source map

ROOMTIMEACTIVITYWEATHERHVACMATERIALCONTROL

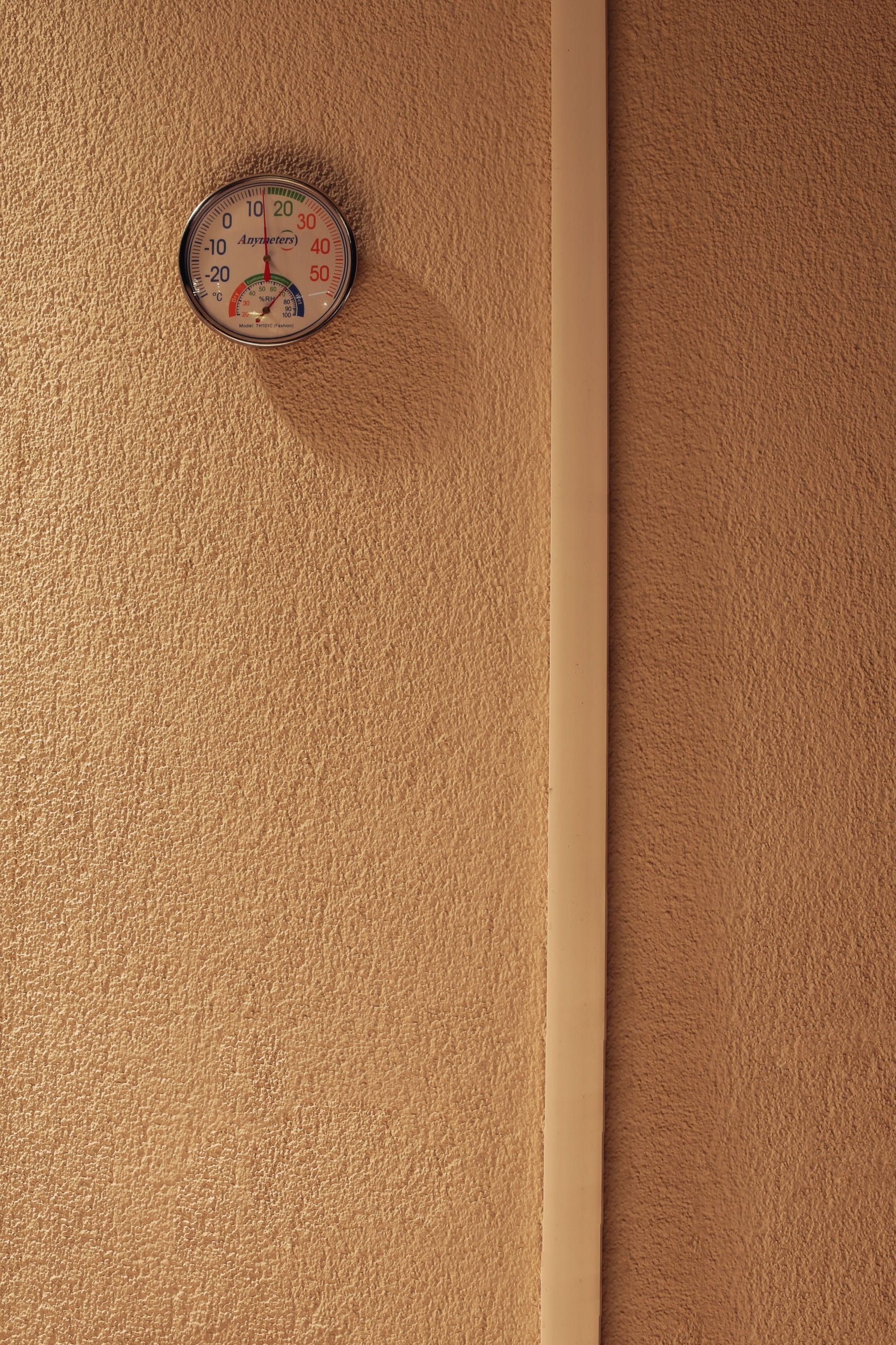

Hygrometer and home-note context used to track indoor humidity patterns — Photo: Pexels

Start with the sequence

A useful moisture-source diary asks three questions

01 · What changed?

Find the event

A shower started. Cooking began. Clothes were drying. Rain arrived. A window opened. Cooling stopped. A dehumidifier started.

02 · Where?

Find the location

One bathroom? One bedroom? The basement? Several rooms at once? One fixed wall or material?

03 · What happened next?

Follow the response

Did RH fall after the event ended? Did moisture spread? Did a control lower the reading? Did the signal return later?

Shower starts → bathroom RH rises→Exhaust runs→RH falls

A repeatable sequence is evidence. It is not automatic proof of the cause.

Before the diary

Where can indoor moisture come from?

Group possible sources by mechanism. The point is not to memorize a list. It is to know which pattern would make each source more plausible, and which observation would fail to prove it.

People & occupancy

Continuous moisture in occupied spaces

Moves higher when a bedroom changes mainly while occupied, a closed room separates from nearby rooms, or the pattern weakens when the room is empty. A bedroom merely feeling humid does not prove occupancy is the source.

Wet activities

Showering, cooking, laundry and wet cleaning

Moves higher when RH rises after the activity begins, the strongest change occurs nearby, and conditions start recovering after the event stops. A room being humid at some unrelated time proves little.

Outdoor air

Windows, infiltration and ventilation

Moves higher when the indoor pattern tracks outdoor moisture conditions more closely than household activity. A high outdoor RH number alone does not establish the direction of moisture transfer.

Rain & bulk water

Water entry is not ordinary room humidity

Moves higher when the change repeatedly follows rain and one location changes physically. A rainy-day RH increase alone does not tell you whether the mechanism is outdoor air, ground response or liquid water.

Ground & below grade

Basement, slab and crawlspace pathways

Moves higher when the strongest signal stays in lower spaces, follows wet weather or is tied to ground-contact materials. A basement having high RH does not identify the pathway.

Stored moisture

Materials can release water after the original event

New construction, recently wet drywall, timber, concrete, plaster, carpet or upholstery can retain moisture. A material merely feeling cool does not establish that it is wet.

HVAC & removal

Equipment can change the pattern without being the source

Cooling, exhaust, ventilation, humidification and dehumidification matter when humidity changes systematically as equipment starts, stops or changes mode. Coincidental operation is weak evidence.

Localized active water

One fixed wet location changes the branch

Plumbing, appliance water, HVAC condensate, rain entry or a repeatedly wet ceiling, wall or floor edge move higher when physical wetting stays localized rather than behaving like general room-air humidity.

Don’t force one cause

Separate the moisture source, the transport path and the removal system

Source

What is adding water?

Cooking, showering, wet material, outdoor air or a leak can provide the moisture load.

→

Transport

How does it reach this space?

Airflow, an open doorway, infiltration, ventilation, ground contact or a material pathway can move moisture.

→

Removal

What is supposed to take it away?

Exhaust, cooling, ventilation, dehumidification, drainage or drying can reduce the load.

A high reading can result from a large source, an easy transport path, weak removal, or several mechanisms operating together.

What happens before the signal?

Start with the clue that repeats

After showering, cooking or laundry

Local moisture generation moves higher. Follow the activity and the recovery pattern.

After rain

Outdoor air, ground response or liquid-water entry moves higher. Separate air moisture from water entry.

Below grade

Basement Moisture Source Diagnosis

Use when the basement changes while upstairs stays comparatively stable.

One room

Rooms & Hidden Spaces

Use when one room repeatedly changes and local activity, airflow or surfaces become defining variables.

Equipment state

HVAC & Ventilation

Use when the pattern repeatedly follows AC, fan or ventilation state.

Rebound

Humidity Returns After Control Stops

Use when a control lowers RH but the signal returns afterward.

Fixed wet location

Hidden Leak or Condensation?

Use when one wall, ceiling or material remains physically wet.

New construction

New-Build Humidity

Use when construction and stored material moisture define the context.

Nothing obvious predicts it

Do not select a source because it sounds plausible. Continue into the diary workflow.

Before you track a source

Make sure the pattern is worth explaining

Record temperature with RH

Temperature changes can alter relative humidity without the same change in water-vapor content.

Keep the sensor representative

Avoid direct supply air, shower spray, direct sun or another obvious local disturbance.

Repeat suspicious readings

A repeatable pattern deserves more weight than one isolated number.

Record physical water separately

A wet material is a different clue from an elevated room-air reading.

Measurement route

Home Humidity Diagnosis

Use this first when measurement credibility, sensor position or interpretation remains unresolved.

Bathroom shower context representing a repeatable indoor moisture event — Photo: Pexels

Before the event

Start with a period when nothing obvious is changing

A baseline gives the later rise or fall something to be compared with. Record the room, temperature, RH, HVAC state, weather, doors and windows, and any known wet material.

RoomWhere is the sensor and what space are you actually describing?

Temperature + RHPreserve the thermal context instead of logging RH alone.

HVAC + weatherNote system state and whether conditions outside are stable, rainy or changing rapidly.

Physical cluesLog visible wetness, odor or damp material separately from the air reading.

Record the change

Write down what happened before the number moved

“Bathroom RH was 68%” is a snapshot. “Shower started, bathroom RH rose afterward, exhaust continued, RH then fell while the hallway stayed stable” preserves a sequence that can be tested again.

Time	Room	Temp	RH	Activity	Weather	HVAC	Door / window	Control	Physical clue
Baseline	Bathroom	—	—	None	Dry	Normal state	Closed	Off	No visible water
Event	Bathroom	—	—	Shower	Dry	Normal state	Closed	Exhaust on	Wet shower surfaces
Recovery	Bathroom / hall	—	—	Shower ended	Dry	Normal state	Door changed?	Exhaust continues	Surfaces drying

Record enough to answer: what changed first, how quickly the signal responded, where the change appeared first, whether it spread, what happened after the event ended, and whether the pattern repeated.

Indoor event

If an activity predicts the rise, follow the event through recovery

EVENT STARTS→RH OR MOISTURE SIGNAL CHANGES→EVENT STOPS→DOES THE SIGNAL DECAY?

Timing

Does the rise begin after the activity, rather than before it?

Location

Is the nearest room affected most strongly?

Removal

Does effective exhaust change the recovery after the event?

Material

Does anything remain physically wet after room RH falls?

An activity-linked pattern moves an indoor moisture source higher. It does not prove the source is the only problem. Weak removal can exist at the same time.

Where did it change?

Did the event stay local or spread through the house?

One room

Local source or removal

Local activity, airflow, surface conditions or room-specific removal moves higher.

Adjacent rooms

Transport matters

Door position, exhaust, moisture migration and connected airflow deserve more weight.

Several rooms

Broader source or system

Weather, HVAC state, ventilation or a house-wide source moves higher.

Whole house

Leave the first room behind

Do not keep forcing the explanation into the place where you first noticed the symptom.

Spatial route

Rooms & Hidden Spaces

Use this when one space repeatedly behaves differently and room function becomes the strongest clue.

Outside conditions

If weather predicts the signal, separate humid air from liquid water

Compare similar indoor conditions across dry weather and wet weather. Record rain timing, outdoor temperature, indoor temperature, indoor RH, window state, ventilation state, basement or crawlspace response, and any physical wetness location.

Humid outdoor air pattern

Several spaces may respond through air exchange. Outdoor RH alone is not enough to determine whether ventilation helps.

Rain / water pattern

A specific location, material or below-grade area may respond after rainfall. That is a different branch from imported air moisture.

“After rain” is timing evidence. It does not tell you by itself whether the mechanism is humid air, ground moisture or liquid-water entry.

Rain and exterior house conditions used to compare weather-linked indoor moisture changes — Photo: Pexels

Air reading or water source?

A fixed wet location changes the diagnosis

Room-air RH describes the air around a sensor. It does not certify a wall, ceiling cavity, floor edge or concealed material as dry.

Does the wet location stay fixed?

If one location remains wet while room conditions change, a localized water or material explanation moves higher.

Does the material dry as room conditions improve?

If physical wetness closely follows room conditions, condensation or retained moisture remains plausible.

Does rain or plumbing use predict it?

Repeatable timing can shift the investigation away from general humidity.

Water-source differential

Hidden Leak or Condensation?

Use when localized wetting and air-humidity explanations compete. Do not open walls simply to settle the question.

Real water droplets on a surface representing localized wetting that must be separated from room-air humidity — Photo: Pexels

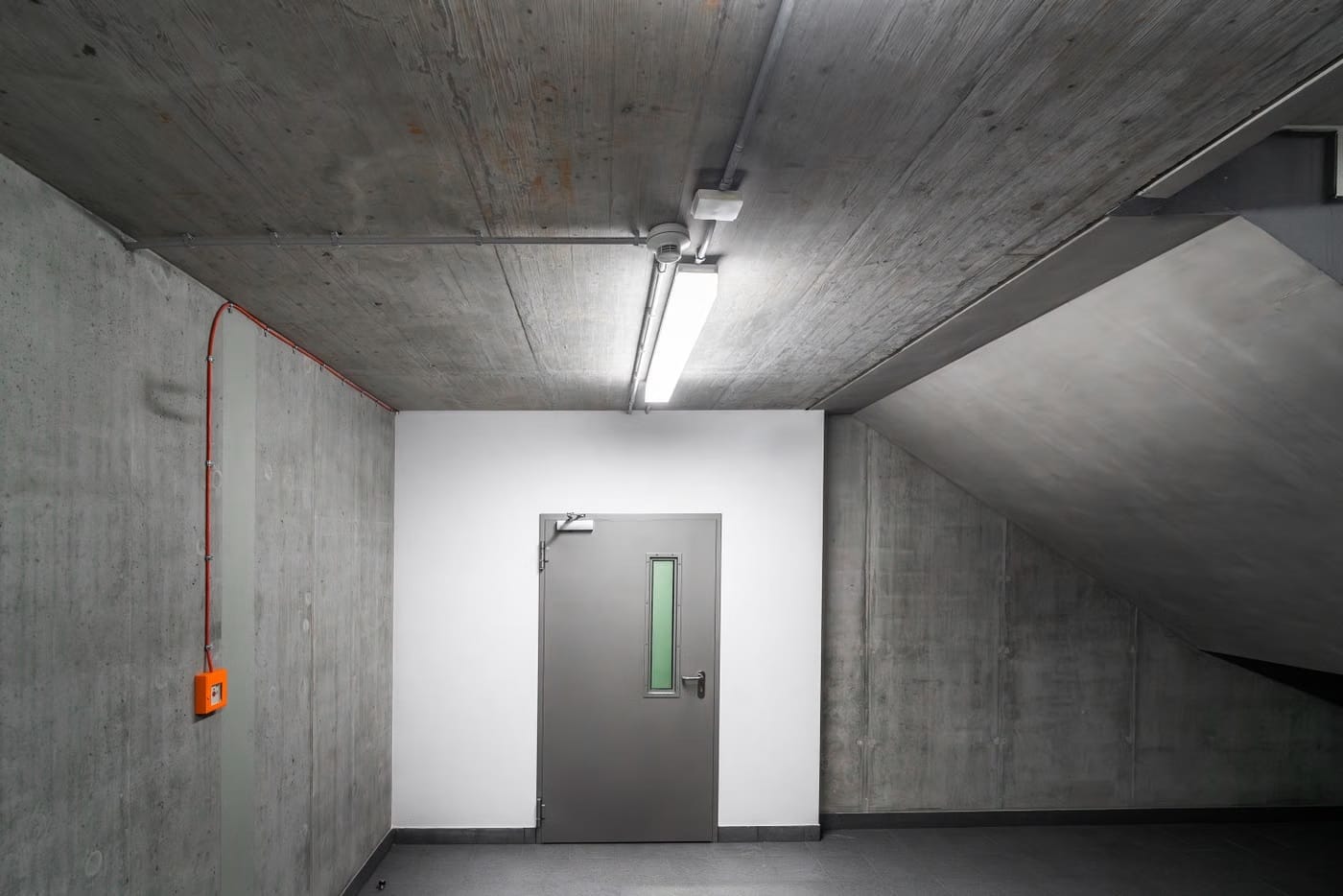

Basement and lower-level building context representing stored and below-grade moisture — Photo: Pexels

Moisture already in the materials

Some sources continue after the original wet process has stopped

Building and furnishing materials can retain water and release it gradually. New concrete, plaster, drywall compounds, timber, recently wet carpet, upholstery and previously wetted assemblies can all create a slow drying pattern.

Continuing source

New water keeps entering. Stopping the original source is more important than merely lowering room RH.

Stored moisture

The earlier water source has stopped, but the material is still drying and releasing moisture.

Construction context

New-Build Humidity

Use when construction moisture, material drying and a new-home context define the problem. Do not assign a universal drying timetable.

System timing

Does the moisture signal follow equipment operation?

Record what happens before equipment starts, while it runs and after it stops. Track cooling, fan state, ventilation, bathroom exhaust, dehumidifier operation and humidifier operation where relevant.

Useful correlation: equipment state repeatedly changes → room temperature and humidity pattern repeatedly change. Weak correlation: the AC happened to be running once when the room felt humid.

Keep the comparison specific: note whether cooling, fan operation or ventilation starts before the moisture signal changes, and whether the same sequence repeats.

HVAC and ventilation context used to compare indoor humidity with equipment state — Photo: Pexels

Make the next observation useful

Write a statement the next observation can challenge

Hypothesis template

WHENX changes…

THENY repeatedly happens…

WHEREin location Z.

Better

Bedroom occupancy is contributing to the overnight RH rise.

The next comparable night can strengthen or weaken that explanation.

Weaker

The ventilation is bad.

That is a conclusion without a specific observation capable of challenging it.

Better

Rain events predict the basement humidity rise.

This describes timing and location without pretending the pathway is already proven.

Better

The bathroom recovers faster when effective exhaust is operating.

This tests removal performance rather than declaring the fan “good” or “bad.”

Don’t destroy the comparison

Change one low-risk variable when practical

Door open vs closed

Useful for a repeatable room-level airflow comparison.

Extractor on vs off

Useful when the local moisture event is otherwise comparable.

Dry weather vs rain

Useful for weather-linked patterns without changing the indoor setup unnecessarily.

Control running vs stopped

Useful when a dehumidifier or another removal system changes the signal.

Do not change five things at once. Open windows, move the sensor, change AC settings, run a dehumidifier and add another fan simultaneously, and the diary loses its ability to tell you what mattered.

Classify the pattern

Which relationship repeats?

Activity-linked

Indoor event

The moisture signal repeatedly follows showering, cooking, laundry or another household event.

Weather-linked

Outdoor or rain response

Rain or outdoor moisture conditions repeatedly predict the change.

Room-specific

Spatial pattern

One room repeatedly behaves differently from representative spaces nearby.

Whole-home

Broad pattern

Several representative rooms move together under comparable timing.

HVAC-linked

Equipment state

Cooling, fan, ventilation or another system state consistently predicts the change.

Material / water-linked

Physical wetting

One material or location remains physically wet and becomes the stronger clue.

Control-linked

Removal changes the signal

RH responds to a control, then may remain lower, plateau or rebound.

Unclear

No stable predictor yet

Continue logging under comparable conditions rather than choosing a source because it sounds plausible.

Keep the claim smaller than the evidence

A diary narrows the source. It does not see through walls

A diary can

expose repeatable timing;
narrow competing sources;
show whether one room or the whole house responds;
reveal weather or equipment correlations;
identify which diagnostic branch deserves attention next.

A diary cannot automatically

prove a hidden leak;
prove a wall cavity is dry;
diagnose a building defect;
identify a mold species;
prove HVAC failure;
establish structural safety.

Use the pattern to choose the next investigation, not to manufacture certainty.

Match control to mechanism

Choose the response after a source hypothesis exists

Source reduction

Reduce avoidable moisture generation when the diary identifies a repeatable indoor source.

Local exhaust

Remove moisture near a shower, cooking event or another local source when extraction is the relevant removal path.

Ventilation

Change air exchange when outdoor conditions and system design make that useful. Do not decide this from outdoor RH alone.

Dehumidification

Remove water vapor from indoor air when moisture removal capacity is the relevant problem.

HVAC response

Investigate cooling, airflow or ventilation when system state predicts the signal.

Building / drainage response

Move toward enclosure, drainage, condensation or material diagnosis when the clue is physical water.

The response must match the source and transport mechanism.

If dehumidification is the right branch

What is the actual dehumidifier question?

The diary only decides when the dehumidifier branch deserves attention. It does not absorb every setup, sizing and failure intent.

Where should the unit go?

Placement and treatment boundary.

What RH should I set?

Setpoint and control behavior.

Doors open or closed?

Room boundary and air exchange.

Portable or whole-house?

Equipment scope and treatment strategy.

What capacity do I need?

Sizing relative to the actual moisture load.

It runs but RH does not drop

Performance failure becomes the defining question.

It collects little or no water

Collection behavior needs its own diagnostic path.

The coils freeze

Visible frost changes the troubleshooting branch.

It runs continuously

Runtime itself becomes the symptom.

A lower number is not the whole story

A control can lower RH while the source continues

SOURCE CONTINUES

↓

CONTROL RUNS

↓

RH FALLS

↓

CONTROL STOPS

↓

RH RETURNS

That pattern can be consistent with continuing indoor moisture generation, stored material moisture, outdoor-air moisture, a ground or building source, control-only suppression, or a temperature effect.

Verification clue: compare whether RH remains lower after the control stops or returns under the same conditions.

Control performance

The machine runs, but the humidity pattern does not improve

Room boundary

What space is the unit actually treating?

Moisture load

Is water entering faster than the equipment can remove it?

Temperature

Are operating conditions affecting moisture-removal performance?

Air exchange

Is humid air continually entering the treatment area?

Sensor

Does the displayed reading agree with a credible independent observation?

Capacity or equipment behavior

Has the question become one of sizing, collection, frost or runtime?

Specific failure route

Dehumidifier Runs but RH Does Not Drop

Use the detailed troubleshooting page once equipment performance itself is the repeatable problem.

Two different controls

Ventilation and dehumidification solve different parts of the problem

Ventilation changes air exchange

It may help when incoming air carries less moisture than the air being removed and the ventilation strategy matches the building conditions.

Dehumidification removes water vapor

It may reduce indoor moisture without changing where that moisture originated.

Neither automatically fixes active roof or plumbing water, ground seepage, wet building materials, an unsafe exhaust path or structural deterioration.

Control choice

Ventilation vs Dehumidifier

Use when the question has shifted from source identification to choosing between two different control mechanisms.

After you change something

Did the pattern change, or only the number?

Did RH change?

Useful, but not enough by itself.

Did the timing change?

Does the same activity still trigger the same response?

Did physical dampness change?

Is the wall, floor or material still wet?

Did the improvement persist?

Or did conditions return once the control stopped?

Did another room change?

A local-looking problem may reveal a broader pattern.

Did the suspected source disappear?

If the source remains but the reading improves, the control may be suppressing the symptom.

A control can suppress the reading while leaving the moisture source unchanged.

Verification route

Verify the Moisture Problem Is Fixed

Use when diagnosis has shifted into confirmation under comparable conditions.

Match the signal

Use the repeating relationship to choose the next diagnosis

Signal	What moves higher	What weakens it	Next branch
RH rises after shower	Local activity source	No timing relationship	Bathroom
RH rises after cooking	Kitchen moisture event	Pattern existed beforehand	Kitchen
Bedroom rises overnight	Occupancy / airflow	Whole house moves together	Rooms
One room repeatedly differs	Local source / airflow	Difference disappears on repeat test	Rooms
Whole house changes after rain	Outdoor / building / weather	No weather relationship	Weather / source
Basement changes after rain	Ground / enclosure / water	Upstairs changes equally	Basement
Fixed wall stays wet	Local water / material	Material dries with air normalization	Leak / building
New home broadly humid	Stored construction moisture	One active wet point dominates	New build
RH follows AC state	HVAC removal / transport	No repeatable system relationship	HVAC
Dehumidifier lowers RH	Removal is occurring	No measurable response	Dehumidifier
RH returns after it stops	Continuing load / stored moisture	RH stays low afterward	Rebound
Unit runs and RH stays flat	Load / boundary / capacity / equipment	Comparable RH is falling	Performance
Rain changes one fixed area	Liquid-water path	No localized physical response	Water differential
Wet cleaning causes temporary rise	Temporary wet process	Pattern predates cleaning	Material / activity
Several rooms rise together	Whole-home mechanism	Only one space changes	Humidity Patterns
No event repeats	Source unresolved	Stable correlation appears	Continue diary

From signal to source

Follow the evidence until one variable becomes more diagnostic

MOISTURE SIGNAL

↓

Is the measurement repeatable?
No → verify measurement and establish a baseline. Yes → continue.

↓

Is there active or localized physical water?
Yes → water-source, condensation or material diagnosis. No → continue.

↓

Does an indoor activity predict it?
Yes → local generation branch. No → continue.

↓

Does weather predict it?
Yes → separate outdoor air, rain and ground response. No → continue.

↓

Is the pattern limited to one room?
Yes → Rooms & Hidden Spaces. No → continue.

↓

Does HVAC or control state predict it?
Yes → HVAC or equipment response. No → continue.

↓

Does a control change the signal?
Yes → separate source reduction from symptom suppression. No → continue diary or escalate persistent unexplained wetting.

Don’t erase the evidence

Avoid choosing a fix before identifying the problem

Do not buy a dehumidifier from one elevated RH reading

You have identified a reading, not the source.

Do not open windows because outdoor RH looks high or low

Temperature and outdoor moisture content matter.

Do not call a wet wall “high humidity”

Physical water deserves its own differential.

Do not call a dehumidifier faulty because it collects a lot of water

Collection confirms removal, not whether the original source is excessive or continuing.

Do not change several variables simultaneously

You destroy the comparison.

Do not assume lower RH means materials are dry

Room air and material moisture are different evidence.

Some sources outrank the diary

Stop general source tracking when the clue becomes a water, electrical or building-safety problem

Stop low-risk troubleshooting when there is

active leakage or continuous water entry;
standing water near electricity;
wet electrical equipment or a wet ceiling near fixtures;
persistent wet building material;
structural deterioration;
repeated rain penetration;
sewage or contaminated water;
unsafe attic or crawlspace access;
suspected concealed moisture requiring invasive assessment;
HVAC condensate or internal mechanical faults requiring service;
combustion or flue safety concerns.

Keep the homeowner boundary non-invasive

Do not open walls to prove a theory, give electrical repair instructions, enter unsafe concealed spaces, identify mold species, diagnose health effects, or treat ventilation as a fix for active water entry.

Go deeper only after the pattern points there

Continue with the branch that best matches the repeatable evidence

Source differential

Hidden Leak or Condensation?

Use when one material or location stays wet.

Weather differential

Rain Infiltration or Humid Outdoor Air?

Use when rain repeatedly predicts the change.

Construction

New-Build Humidity

Use when stored construction moisture defines the context.

Spatial

Rooms & Hidden Spaces

Use when one space repeatedly behaves differently.

Below grade

Basement Moisture Source Diagnosis

Use when lower-space conditions dominate.

Surface water

Condensation & Surface Clues

Use when visible surface water becomes the strongest clue.

HVAC

HVAC and Indoor Moisture

Use when equipment state repeatedly predicts the pattern.

Ventilation

Ventilation Increasing Indoor Humidity

Use when air exchange appears to worsen the moisture condition.

AC Running but Humidity High

Use when cooling is active yet the whole-house moisture pattern persists.

Dehumidifier

Dehumidifier Runs but RH Does Not Drop

Use when equipment performance becomes the repeatable problem.

Rebound

Humidity Returns After Control Stops

Use when RH improves under control and rebounds afterward.

Verify

Verify the Moisture Problem Is Fixed

Use when the job has shifted from diagnosis to confirmation.
